The right appearance with the right phone number!
Assign the same phone number to several employees (group-independent)
Assign phone numbers that have already been assigned elsewhere (e.g. modules, conference rooms or groups)
Multi-client support: Signalling of non-network telephone numbers
Dynamic activation/deactivation of signalling via function key "Activate/deactivate module"
New: Wildcard support forlogin IDs
new: Exception list for destination numbers for which no deviating signalling is to apply (e.g. own mobile phone numbers)
Data protection and function maintenance: Fluxpunkt modules "do not phone home" and are not dependent on the function/accessibility of external license servers.
Phone number signaling changes the signaled phone number of specified users. A number to be displayed can be configured for each STARFACE user. In theory, any number in the international number format is possible (country and area code). The phone numbers do not have to belong to the line configuration.
The module only changes the phone number for calls that go to the exchange. To identify these, three conditions are checked:
- The caller is a STARFACE user
- The called party number begins with "0"
- The called party is not a STARFACE user
Let's go: Installation
Download the module for your STARFACE version:
für STARFACE 6.3–6.4 (v26)
Enter the module license key in the module configuration.
(How do I get a module license key?)
Please note our general information for our modules.

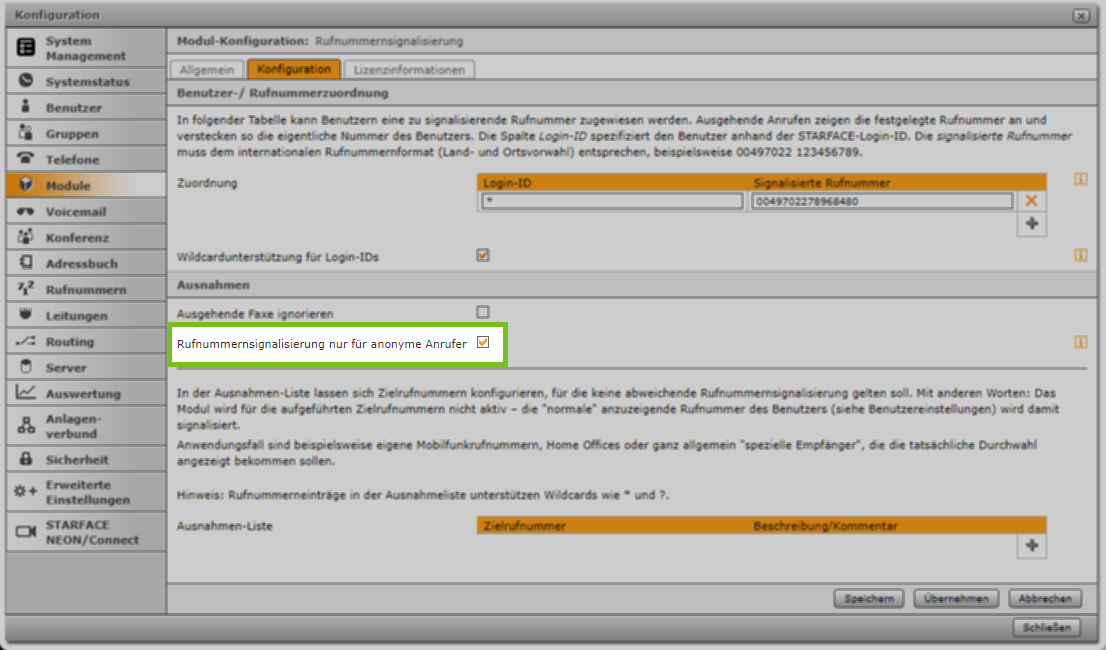

The Login ID column specifies internal STARFACE users. A call number to be signalled can be assigned to them. Numbers must correspond to the international number format (country and area code). Spaces and hyphens are filtered out internally by the module and may therefore be contained in the phone numbers. The numbers may also begin with the prefix "+" (instead of "00"). If the phone number is prefixed with a "+", the plus-symbol is replaced by "00" by the module (internally and not visible to the user).
Hint: Login IDs (from version v24 upwards) may contain the wildcards * and ?
Frequently asked questions about our STARFACE extensions
Please download the appropriate module file for your STARFACE version. These can be found under the"Description" tab in the"Let's go" section: Installation" (the module file has the extension .sfm).
Import this file into the module library of your STARFACE via "Install module by upload":
interface of STARFACE
|Module Library" tab||Import module" function|
"Install module by upload"
The option "Install modules using license key" is only available for STARFACE modules. Third party modules must always be installed by upload!
After importing the module, a module configuration must be created for the module that has just been installed:
interface of STARFACE
|Module Configuration Tab||New configuration" function key|
A description of the configuration options can be found in the documentation of the module.
Upgrade / Downgrade
When an existing module is imported, it is replaced by the uploaded module version, regardless of the version number. This allows modules to be easily updated or reset to earlier versions. The module configuration remains unchanged.
- Please check whether you have a Module-License key in the module configuration and not the server license key of your STARFACE.
- Please check whether the module license key belongs to your STARFACE server license. Server license keys as well as module license keys are specified on delivery notes. Module licenses are only valid for the specified server license.
- Please check whether you have entered the module license key correctly or copied it into the license field. Make sure there are no additional characters or characters missing. Make sure that the license field is not filled with incorrect data by your browser (form completion). If in doubt, enter the license key with another browser.
This applies to the operation of NFR modules:
The STARFACE installation must have an NFR server- or NFR user license to enable the module function - even without entering a module license key.
Price and ordering process
The price of a specific module can be found under the tab"Price / Purchase" on the respective product page. The indicated prices are net prices excl. value added tax.
To order a module license (also NFR), please click on the following button:
STARFACE partners with a "Certified" level or higher automatically receive the purchase conditions agreed with STARFACE for third-party modules (or the purchase conditions of a Certified Partner) when ordering via our Wiki.
Hint: Within the framework of the ordering process, only the end customer prices are displayed. However, if you indicate that you are a STARFACE Partner during the ordering process, your order will automatically be billed at partner conditions once your partner status has been confirmed.
During the ordering process you have the possibility to enter a delivery and invoice email address. We will send the module license key including a delivery note to the delivery e-mail address, but without quoting prices. The corresponding invoice will then be sent to the invoice email address. As a STARFACE partner, you can have the module license delivered directly to your end customers.
For module orders we offer invoice payment with 14 days payment term. We reserve the right to deviate from this in individual cases and to demand advance payment.
Only consumers (§ 13 BGB) are entitled to a right of withdrawal from distance contracts (§ 312g BGB). We do not trade with consumers. Our offers are therefore only aimed at entrepreneurs (which is why these are also provided with net prices).
As a STARFACE partner, you receive free NFR licenses for your own use for all our modules. So you can convince yourself of the functionality and demonstrate the functionality to your customers.
Of course, you are also entitled to the statutory warranty rights. In addition, however, we do not grant any rights of withdrawal or revocation.
Fluxpunkt modules for STARFACE are usually licensed on a STARFACE installation (more precisely: on a STARFACE server license; exception: Insight Analytics). A license is therefore required for each appliance, virtual machine or cloud instance on which a module is to be operated. Therefore, when ordering a module, it is mandatory to specify the server license key with which the module is to function. The server license key is requested during the ordering process. The issued module license key is mathematically related to the server license key and allows operation with exactly this server license.
If the module is to be installed on a STARFACE Free Edition, the hardware ID of the installation must be specified instead of the server license key. You can find these in the console log of the attachment (under Admin/Server/Log File).
Please make sure to keep the server license key when moving a STARFACE installation. If this should change, modules must be licensed again.
STARFACE partners from Certified level receive free NFR licenses from us (1 license per module) for using the modules on their own system.
For partner systems with NFR server license:
If an NFR server license is installed on a STARFACE partner system (not an NFR user license!), all our modules are automatically activated and executable without entering a module license. In this case you can simply download and use the modules.
Hint: Please do NOT order a NFR module license in thiscase.
For partner systems with NFR user license:
The following modules already recognize NFR user licenses and are then activated without entering a module license (we plan to extend this to all modules):
- Active Directory Synchronization
- Blacklist PRO
- Extended Routing
- HD Ringtones
- Intercom / Automatic call acceptance with intercom
- Multi-stage Forwarding
- Emergency Call & Alerting
- Privacy for STARFACE
- Reverse Lookup PRO
- User Template PRO
- Group Busy / Group Busy
- Last Contact Forwarding
Hint: Please do NOT order a NFR module license in thiscase.
Special note regarding the "Insight Analytics" product
Since the product "Insight Analytics" usually involves a certain amount of consulting, configuration and individualization work and we cannot provide this within the scope of free NFR licenses to a large number of STARFACE partners, unfortunately there are no free NFR licensesfor "Insight Analytics".
STARFACE partners can purchase "Insight Analytics" for their own installations at the dealer's purchase price and receive a refund of the purchase price as soon as they can provide evidence of the sale of customer licenses which in total correspond to at least the number of user licenses used by them.
Example: You need a license for 21-40 users for your own use as a STARFACE Partner. You will receive a refund as soon as you sell at least one additional license for 21-40 (or more) users or two licenses for 1-20 users.
Since we cannot withdraw licenses, there are no demo or test licenses of our modules. If something does not work as expected, you are of course entitled to the usual defect rights.
Please talk to your responsible STARFACE partner who can test the modules for you and tell you more about your application or scenario.
To purchase module license keys, please contact your trusted STARFACE partner.
STARFACE partners obtain module license keys for customer installations by specifying the server license key either directly from us or via STARFACE.
These can be found in the console log under Admin/Server/Log File.
In the STARFACE license model, STARFACE redundancy licenses behave like full-fledged "normal" STARFACE licenses. Functionally there is no difference - this exists only in the calculation (or not calculation) of redundancy licenses (these are issued by STARFACE free of charge). Primary and secondary systems receive different and independently usable server licenses.
Our module licenses refer to the installed server license of a system. Aredundancy system therefore requires its own independent module license key, which must also be licensed separately (because the redundancy system can in fact be used independently at the same time). The module license key of the primary system will not work on the secondary system (and vice versa).
Important organisational measure (for modules published before 08/2018)
When using the STARFACE redundancy module, after switching from a primary to a redundancy system, the module license key suitable for the system must be re-entered in the module!
Reason: The STARFACE redundancy module transfers the module license key of the primary system to the secondary system as part of regular synchronization. However, the module license key of the secondary system must also be used on the secondary system.
Modules released after 08/2018 include a new license component that supports module license keys that are valid for multiple server license keys.
Updates and Compatibility
Information about the compatibility of our Fluxpunkt modules for STARFACE or selected third-party modules with certain STARFACE versions can be found on the corresponding product documentation page. There you will also find the latest downloads of stable module versions.
Information about STARFACE modules (modules of the manufacturer STARFACE) can be found under
If you do not find any newer module versions on the product documentation pages, there are none.
Please be patient in this case and visit us again at a later date.
If you want to be informed about new module versions, just subscribe to our Twitter channel.
Please understand that we do not send individual notifications by email or answer questions about possible release dates.
If an update for one of your modules is available, simply download it from our Wiki and upload it to your STARFACE via module upload. STARFACE automatically replaces the older installed module version and adopts the existing settings.
We try to adapt Fluxpunkt modules regularly to new STARFACE versions. After an internal test phase, updates are made available for download on the corresponding product documentation page.
Unless otherwise agreed, modules are licensed for a specific STARFACE version upon purchase - a license for a specific module version is purchased accordingly. There is no entitlement to updates, but module license keys are usually unchanged across multiple versions. We reserve the right to provide updates with an update price in individual cases due to new functions or complex adaptations. The update price is then a discount on the new price when purchasing a new module license.
Usually, however, you simply download the latest module version from our Wiki free of charge and use it to update your STARFACE installation. There are no software maintenance or update contracts.
No, support services are not included in the module price. You receive support within the scope of support contracts or on the basis of a time account.
You can bundle modules directly when ordering with a support hour contingent at reduced prices. Please contact us if you have purchased a Fluxpunkt module through other distribution channels or plan to do so (e.g. through STARFACE).
We try to answer possible questions in detail in the module documentation or in the FAQ area of the respective module.
The contact person for end customer questions is the assigned STARFACE Partner.
In addition, individual fee-based support is available to you in our support portal or under the email address [email protected] .
Please note that for data protection reasons we will not provide remote support or analysis of logs containing personal data.
Compatibility / Updates
|Module version||Compatible with STARFACE version|
|24||6.3-6.4||New feature: Wildcard support for login IDs. Especially if many employees are supposed to signal the same phone number, this speeds up the configuration considerably.|
|26||6.3-6.4||New feature: Exceptions list for destination phone numbers. Destination phone numbers can be configured for which no deviating signalling is to be applied.|
